Technics - Speaker SB-G90M2 (Single Speaker)
Technics - Speaker SB-G90M2 (Single Speaker)
The Technics SB-G90M2 is floor standing speaker system that realizes superb sound image localization and rich, three-dimension sound space.
Includes one speaker
Inheriting the concepts of point sound source and linear phase, the Technics SB-G90M2 achieves superb sound image localization for a true-to-life sound stage specialization. This three-way bass reflex speaker system consists of a newly developed 2-way coaxial driver, combining a 25mm dome and a 160mm midrange cone. This is accompanied by two 160mm woofers. Thorough CAE analysis was used to optimize drivers, elements, and enclosure structures to efficiently eliminate unwanted vibrations and distortions.
- Reworked Coaxial Driver Unit for less distortion; linear phase plug eliminates phase disturbance
- Advanced BDMA (Balanced Driver Mounting Architecture) so vibrations can ‘escape’ to the ground
- More energetic cabinet structure to efficiently eliminate standing waves

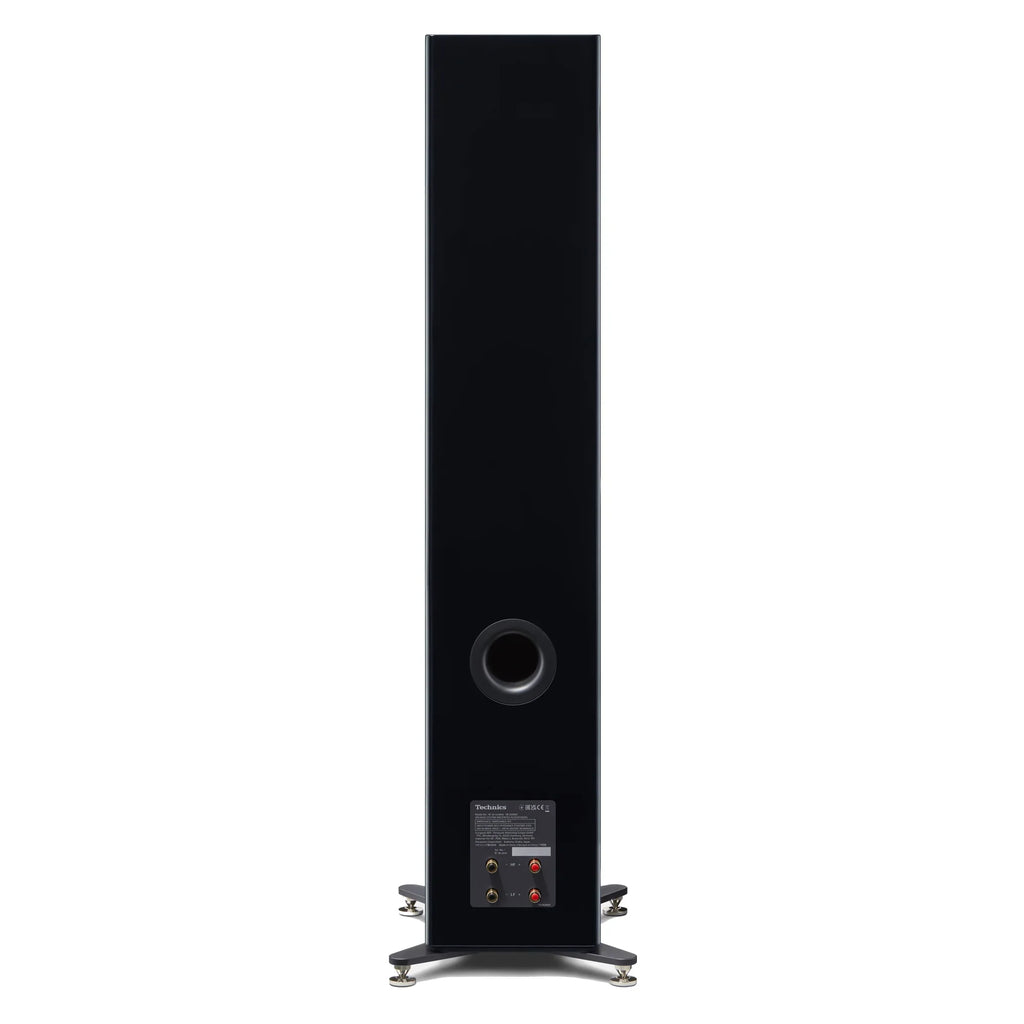

- Responding to requests from our customer base, the new SB-G90M2 now features bi-wiring speaker terminals
|
Type |
3-way 4-speaker Bass Reflex (coaxial 2-way midrange/built-in tweeters) |
|
Speaker Units (Woofer) |
16 cm (6½") Cone type x 2 |
|
Speaker Units (Midrange / Tweeter) |
16 cm (6½") Cone type x 1 / 2.5 cm (1") Dome type x 1 |
|
Impedance |
4Ω |
|
Input Power (IEC) |
100 W (Rated), 200 W (Max) |
|
Recommended Amp Power |
40 - 200 W (Speaker tested by IEC60268-5 Short Term Max Test) |
|
Sound Pressure Level |
86 dB / 2.83 V (m), 83 dB / W(m) |
|
Frequency Range |
33Hz - 90kHz (-10dB) |
|
Crossover Frequencies |
500Hz, 3.4kHz |
|
Dimensions (W x H x D) |
11-1/2 x 43-27/32 x 14-2/5 inch (including spikes) |
|
Weight (per unit) |
Approx. 78 lbs |
|
Accessories |
Spike x 4, Spike shoe x 4, Spacer x 4, Base plate x 4, Base plate screw x 12, Rubber foot x 4, Short wieres x 2, Speaker net x 1, Cleaning cloth x 1, Owner's Manual x 1, |
